License: Demo $85
OS: WinXP,WinVista,WinVista x64,Win7 x32,Win7 x64,Win2000
Requirements: Pentium 4 processor, 512 Mb of RAM, 40 Mb of free hard disk space, Open GL support.
Publisher: CCTVCAD Software
Homepage: http://www.cctvcad.com

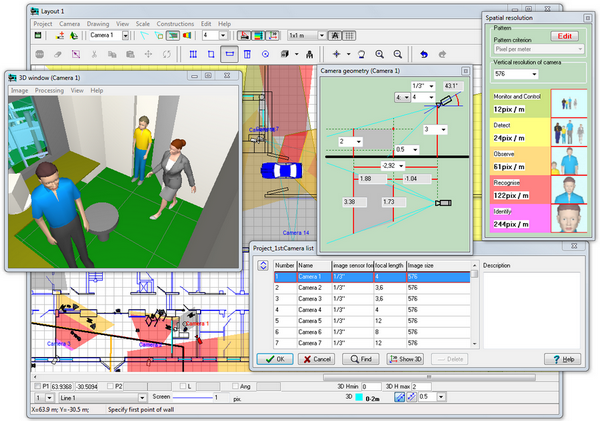

VideoCAD is a multifunctional tool for CCTV design. VideoCAD Starter – the easiest, low cost version of VideoCAD. VideoCAD Starter is less demanding of computer resources because of absence of resource-intensive tools. VideoCAD Starter is registered only by personal registration code, without dongle, without hardware locking.
With VideoCAD Starter you can:
Choose the most suitable lenses, heights and locations for camera installation to provide the required parameters of view areas.
Calculate the horizontal projection sizes of view areas to draw them on the location plan.
Display by separate colors different regions of spatial resolution and field-of-view size.
Choose visually a relative location of cameras using the graphics window with CAD interface.
Locate cameras on the prepared layouts in *.bmp, *.jpg formats.
Obtain a drawing containing horizontal projections of site layout with camera images, calculated view areas, and with coordinate grid to be used in graphical path of the project.
Export the obtained drawing into any of the following formats: *.bmp, *.jpg.
Construct three dimensional models of real scenes with the possibility of loading prepared 3D models (a person, a car).
Spare the means and win tenders due to the reduction of cameras’ quantity in projects and increase of their efficiency.
Reduce time expended and boost design quality.
Cut down the amount of controversial situations with customers and accelerate their solution.
