License: Shareware $48
OS: WinXP,WinVista,WinVista x64,Win7 x32,Win7 x64,Win98
Requirements: IntelliCAD versions which can load SDS applications (dll)
Publisher: Rcad Software
Homepage: http://www.rcad.eu

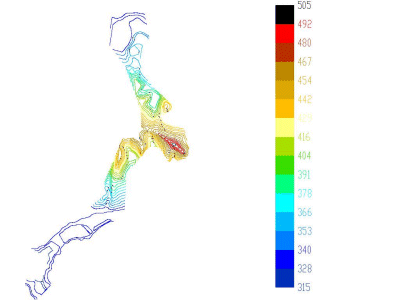

TRIANGULATION, ISOLINES, VOLUME, LOADING of XYZ points files, 3DINTERSECTION, cross sections and a longitudinal profile; 6 functions for IntelliCAD versions which can load SDS applications (dll).
TRIANGULATION performs the triangulation of a set of 3D points with compulsory interconnections between the points. The outcome is represented by 3DFACE entities. ISOLINES determines the curves of intersection of a set of 3DFACE entities with a set of equidistance planes, horizontally or vertically. The outcome is made up of POLYLINE entities optionally interpolated. VOLUME determines volume and center of gravity of a body limited by 3DMESH and 3DFACE entities. You can load and draw a file of points having the format: Number X Y Z Code. 3DINTERSECTION determines the intersection curves between 2 sets consisting of 3DFACE and 3DMESH entities. The outcome is represented by 3DPOLY entities. You can also make the projection over a triangulation of a 2D POLYLINE and generate cross sections and a longitudinal profile corresponding at projection. The POLYLINE may contain arcs.
